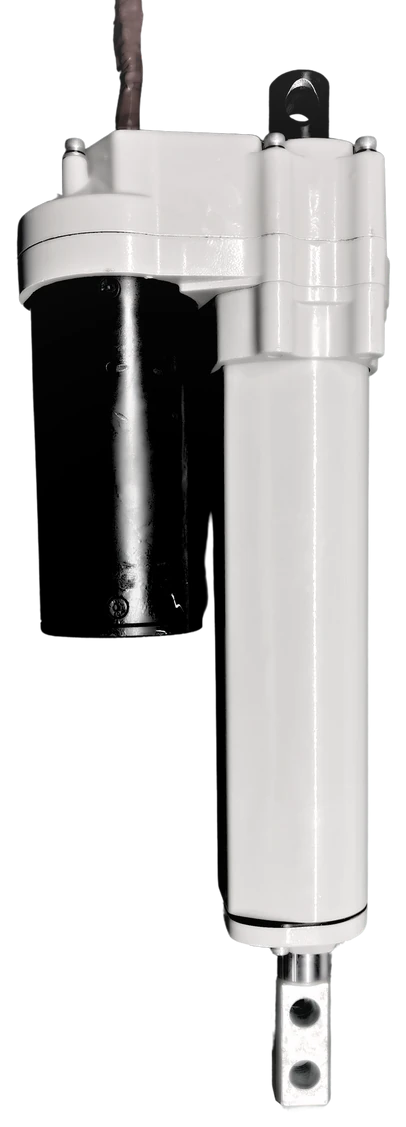

DF-LA-SL650
- 635 mm stroke
- 7000 N
- IP65
Long-stroke 24 V BLDC linear actuator with M14 rod end bearings at both ends.
Specifications
Chennai, India · Manufacturer & exporter
Heavy-duty BLDC linear actuators made in India
Dreamfusion Technologies is a linear actuator manufacturer in Chennai. We build 24 V brushless electric actuators, solar tracker systems and motor controllers, with 7000 N dynamic load and IP65 protection, for OEMs and distributors worldwide.
- 7000 N dynamic load
- IP65 aluminium housing
- 24 V 240 W BLDC
- 250 & 635 mm stroke
7000 Ndynamic load
IP65sealed housing
635 mmstroke, SL650
- Made in ChennaiDesigned and built in India
- BLDC drive24 V, own controller design
- IP65 sealedAluminium profile tube housing
- OEM readyStroke, mounting and interface
Products
Electric linear actuators, solar trackers and motion control
Start with a standard 7000 N BLDC linear actuator or ask for a version built for your machine.

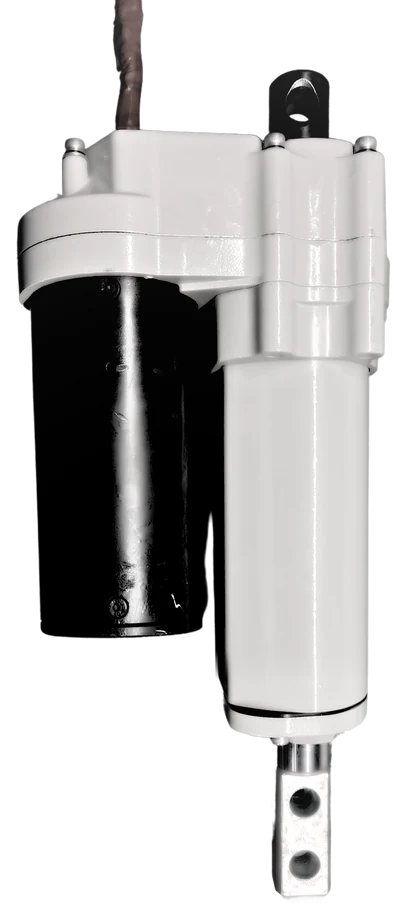

Illustrative imageDF-LA-SL250
- 250 mm stroke
- 7000 N
- IP65
Compact-stroke version with DIA14 square connectors and an adjustable hole.
Specifications
Solar tracker systems
- Dual-axis
- Remote control
- Retrofit
Tracker solutions built around our own BLDC actuators and controllers.
Solar trackersCompare models
Choose your stroke length
Both models share the same 7000 N BLDC platform. The difference is stroke and end mounting.
| Specification | DF-LA-SL650 | DF-LA-SL250 |
|---|---|---|
| Stroke length | 635 mm | 250 mm |
| Dynamic load | 7000 N | 7000 N |
| Speed, free / full load | 6 / 4 mm/s | 6 / 4 mm/s |
| Motor | BLDC, 24 V, 240 W | BLDC, 24 V, 240 W |
| IP class | IP65 | IP65 |
| End mounting | M14 rod end bearing | DIA14 square connector, adjustable hole |
| Installed length | 950 mm | See quotation |
Solar

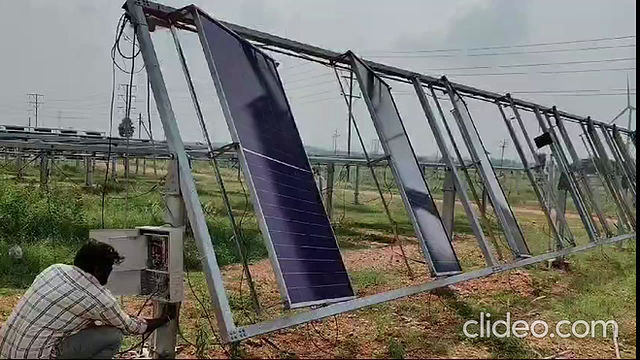

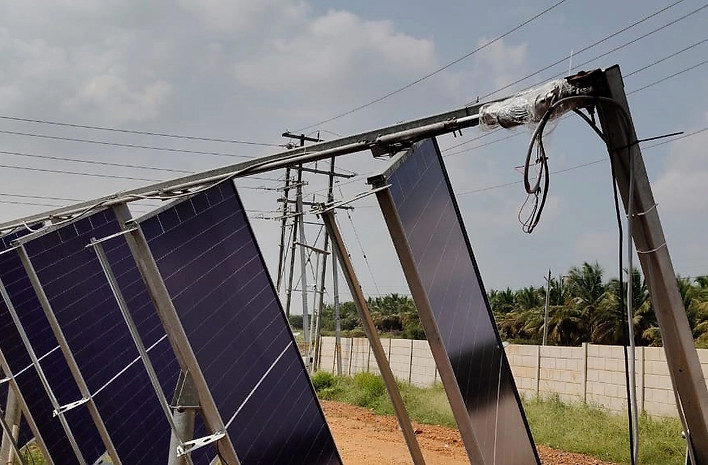

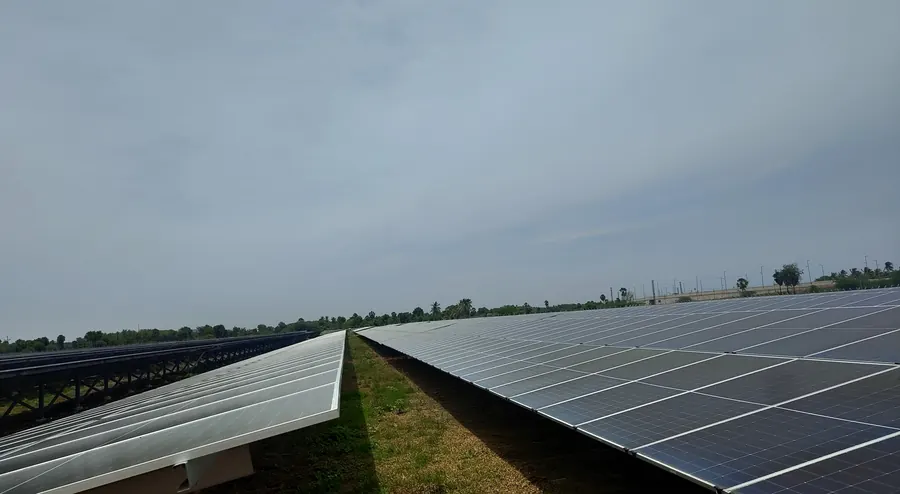

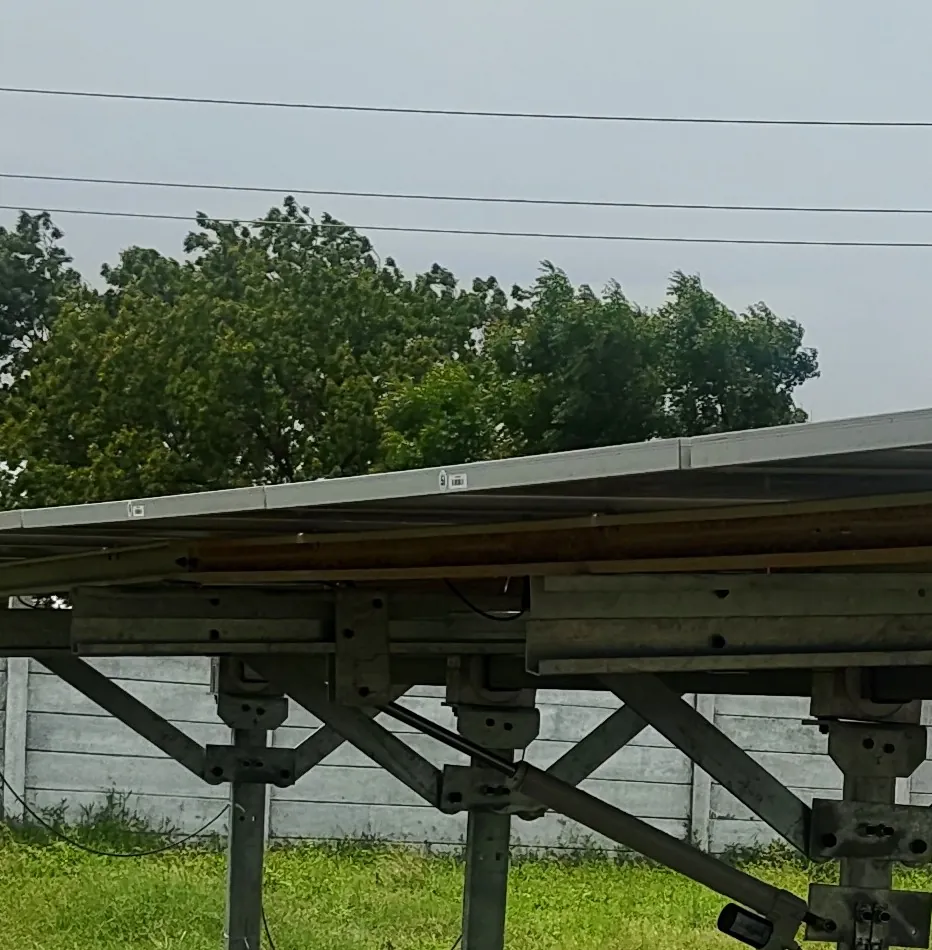

Solar tracker actuators proven in the field
Our BLDC linear actuators drive solar trackers on real projects. Dreamfusion has delivered 1 MW of solar tracker solutions and has more than 2 MW in the current pipeline.

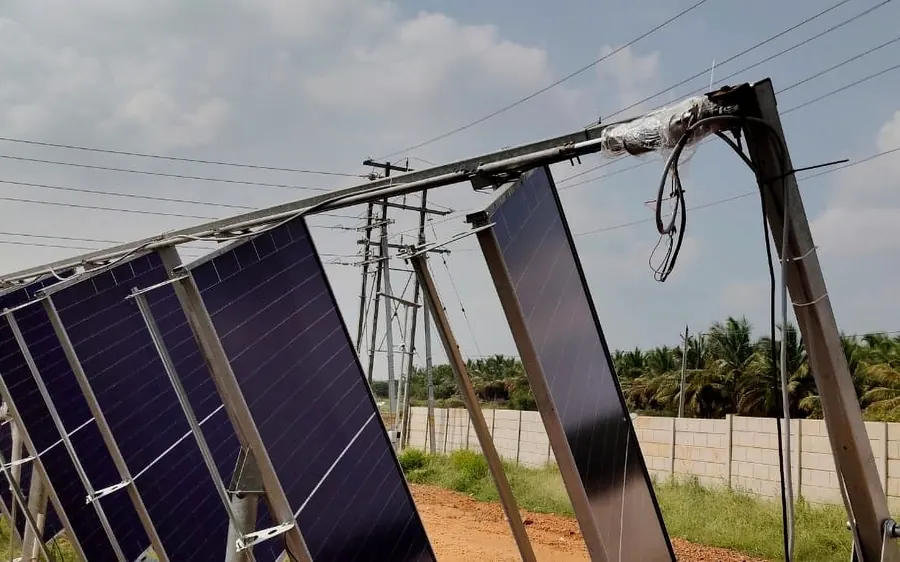

- Dual-axis trackers with remote control
- Single-axis option and retrofit of fixed panels
- Actuator, motor and controller from one source
Made in Chennai

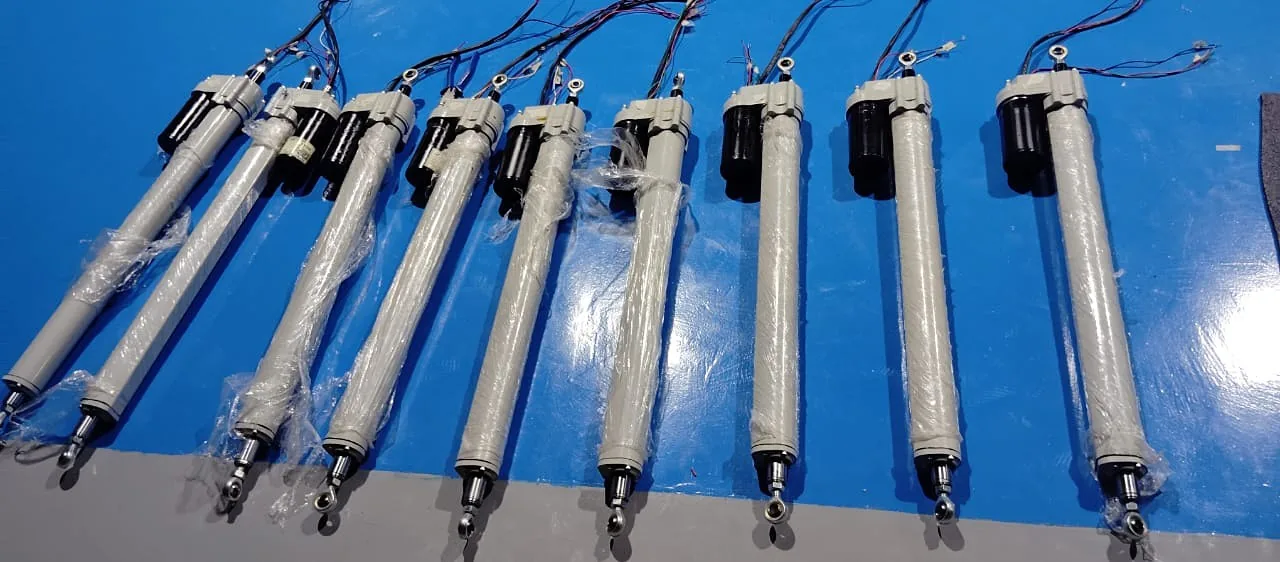

Built in-house, from our own design
Dreamfusion designs and builds its linear actuators, motors and controllers in Chennai, so changes for your application stay close to the people who make the product.
Applications
Where our heavy duty electric linear actuators are used
Anywhere you need to push, pull, lift, tilt or position a load with a sealed electric drive.
Solar trackers
Single and dual-axis tracker drives for solar sites.
Greenhouse and vent control
Opening and closing vents, windows and shutters.
Gates and barriers
Automated gates, doors and access control.
Industrial automation
Positioning, clamping and lifting inside machines.
Medical and furniture
Adjustable beds, chairs and height-adjustable furniture.
Your OEM product
Tell us the stroke, load and interface you need.
Why Dreamfusion
An OEM linear actuator supplier you can talk to directly
1 MWof solar tracker solutions delivered
2+ MWin the current project pipeline
2018company founded in Chennai
7000 Ndynamic load per actuator
Need actuators for your product or project?
Send the stroke, load and voltage. We reply with options and a quotation.
